Electric and Manual Height Adjustable Wire Harnesses

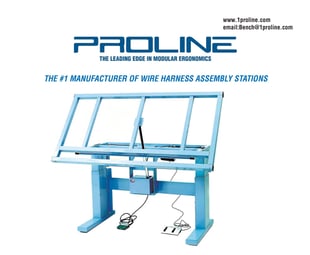

Wire Harness Bench Electric Height Adjustable






Manual Wire Harness Bench



The EWH (Electric Height Adjust, Wire Harness) and the MWH (Manual Height Adjust, Wire Harness) workbenches are designed for the ergonomic assembly of wire harnesses.



Both models feature a 72" long x 36" wide platform capable of holding boards from 24" wide x 24" long, up to 48" wide x 96" long.

Both models incorporate an adjustable front guard rail that captivates boards from .250" to .750" thick.






The EWH features a 60 degree electric foot pedal operated tilt with 600 pounds capacity. When the EWH is fully tilted, the front edge of board adjusts from 24.5" to 40.25" high via foot pedal operation.


The MWH features a 60 degree 13 position manual tilt. When the MWH is fully tilted, the front edge of the board adjusts from 25.25" to 34" via the hand crank.

Pick Your Colors: Color picker
Part No. Description Weight (lbs.)
EWH7236
72"L x 36" W
Wire harness table with 72"L x 36" W platform to hold wire harness assembly boards. With electric height adjustment and electric tilt. 327

MWH7236
72"L x 36" W
Wire harness table with 72"L x 36" W platform to hold wire harness assembly boards. With hand crank height adjustment and manual tilt. 240

Download our Wire Harness flyer



Make your Wire Harness Bench Mobile

See our caster page

Three choices for the mode EWH:

  • TLC-4 (price includes welded caster plate)
  • TLC-4MVSQS bolt on brakect casters can be removed.
  • Offset caster moutning kit, keeps the start height of the EWH the same.
  • For the model MWH use the TLC-4 or the TLC-4ELQS
