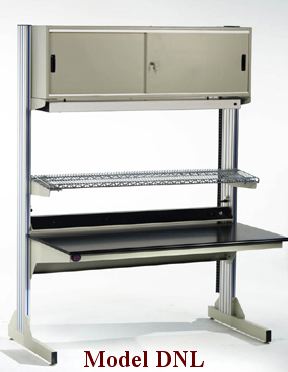

Model DNL - Dimension Next Lab Workbench

Cantilever Lab Workbench




Featuring durable powder coat paint, textured paint is standard, also available with smooth chemical resistant paint.

Pick Your Colors: Color picker




The Model DNL Lab Bench offers esthetics, flexible modularity and ergonomics. Designed with work surfaces and frames that give you the ultimate laboratory workbench. Easily add and adjust optional accessories to meet your needs.

Work surfaces adjust vertically anywhere on the aluminum upright allowing increased operator comfort and production.

Proline overhead and under surface modular cabinets allow you to neatly organize and utilize work space. Optional task lighting shown mounted under sliding door cabinet reduces worker fatigue yet takes up very little space.

The DNL uses the same frame design as the standard, industrial Dimension Next allowing you to save money and space with double sided units and add-on units.

Single sided starter station includes two uprights, two horizontal leg supports, one top frame assembly and one work surface .

Single sided add on station includes one upright, one horizontal leg support, one top frame assembly and one surface.

Double sided starter station includes two uprights, two back to back horizontal leg supports, two top frame assemblies and two work surfaces.

Double sided add on station includes one upright, one back to back horizontal leg support, two top frame assemblies and two work surfaces.

laboratory dimension next

The Dimension Next Lab workbench pictured consists of the following components:
A is a Double Sided Starter
B is a Double Sided Add On
C is a Corner Unit, and D is a Single Sided Starter.

laboratory dimension next




Model DNL

Single Sided


Single Sided Starter Stations: 48"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL4830SSER 177 No
H.D.P.E. DNL4830SSHDPE 177 No



Single Add-Ons: 48"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL4830SAER 130 No
H.D.P.E. DNL4830SAHDPE 130 No



Single Sided Starter Stations: 60"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL6030SSER 198 No
H.D.P.E. DNL6030SSHDPE 198 No



Single Add-Ons: 60"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL6030SAER 148 No
H.D.P.E. DNL6030SAHDPE 148 No



Single Sided Starter Stations: 72"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL7230SSER 217 No
H.D.P.E. DNL7230SSHDPE 217 No



Single Add-Ons: 72"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL7230SAER 168 No
H.D.P.E. DNL7230SAHDPE 168 No

Model DNL

Double Sided


Double Sided Starter Stations: 48"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL4830DSER 280 No
H.D.P.E. DNL4830DSHDPE 280 No



Double Add-Ons: 48"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL4830DAER 220 No
H.D.P.E. DNL4830DAHDPE 220 No



Double Sided Starter Stations: 60"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL6030DSER 198 No
H.D.P.E. DNL6030DSHDPE 198 No



Double Add-Ons: 60"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL6030DAER 260 No
H.D.P.E. DNL6030DAHDPE 260 No



Double Sided Starter Stations: 72"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL7230DSER 360 No
H.D.P.E. DNL7230DSHDPE 360 No



Double Add-Ons: 72"L x 30"W

Top Work Surface Stock # Wt. In Stock?
Epoxy Resin DNL7230DAER 300 No
H.D.P.E. DNL7230DAHDPE 300 No

Turn the DNL into a mobile bench

with optional casters here.

Increase storage on the DNL by adding an optional Economy Lab Cabinet.
