Model MRBT

Mobile Retractable Ball Transfer


Mobile RBT units are ideal for building assemblies in place and moved to subsequent processing stages. Eliminate lifting strains.



These retractable ball transfers are available with both lever and air operation. The air operated models need 60 psi. shop air.

Our SD model has 200 lbs. Capacity with the transfers on a 6" x 6" pattern.

Our HD model has 500 lbs. capacity with the transfers on a 3" x 6" pattern.

The height of a MRBT is 7.375 inches

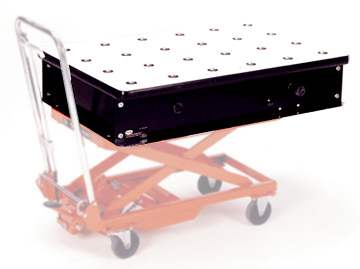

Illustration Note: Optional Mobile Hydraulic Scissor Lift is grayed out. Pricing is for the MRBT only, Scissor Lift sold separately.

AIR OPERATED MRBT

Standard Density (SD), 6 x 6 Ball Pattern, Full Coverage

Stock # Size W x L, Ball Pattern Wt.
MRBT1824-ASD 18"W x 24"L, 6" x 6" (SD) 56
MRBT2424-ASD 24"W x 24"L, 6" x 6" (SD) 66
MRBT2430-ASD 24"W x 30"L, 6" x 6" (SD) 78
MRBT2436-ASD 24"W x 36"L, 6" x 6" (SD) 89
MRBT3030-ASD 30"W x 30"L, 6" x 6" (SD) 88
MRBT3036-ASD 30"W x 36"L, 6" x 6" (SD) 98
MRBT3636-ASD 36"W x 36"L, 6" x 6" (SD) 106

High Density (HD), 3 x 6 Ball Pattern, Full Coverage

Stock # Size W x L, Ball Pattern Wt.
MRBT1824-AHD 18"W x 24"L, 3" x 6" (HD) 65
MRBT2424-AHD 24"W x 24"L, 3" x 6" (HD) 76
MRBT2430-AHD 24"W x 30"L, 3" x 6" (HD) 88
MRBT2436-AHD 24"W x 36"L, 3" x 6" (HD) 99
MRBT3030-AHD 30"W x 30"L, 3" x 6" (HD) 98
MRBT3036-AHD 30"W x 36"L, 3" x 6" (HD) 108
MRBT3636-AHD 36"W x 36"L, 3" x 6" (HD) 116




LEVER OPERATED MRBT

Standard Density (SD), 6 x 6 Ball Pattern, Full Coverage

Stock # Size W x L, Ball Pattern Wt.
MRBT1824-LSD 18"W x 24"L, 6" x 6" (SD) 56
MRBT2424-LSD 24"W x 24"L, 6" x 6" (SD) 66
MRBT2430-LSD 24"W x 30"L, 6" x 6" (SD) 78
MRBT2436-LSD 24"W x 36"L, 6" x 6" (SD) 89
MRBT3030-LSD 30"W x 30"L, 6" x 6" (SD) 88
MRBT3036-LSD 30"W x 36"L, 6" x 6" (SD) 98
MRBT3636-LSD 36"W x 36"L, 6" x 6" (SD) 106

High Density (HD), 3 x 6 Ball Pattern, Full Coverage

Stock # Size W x L, Ball Pattern Wt.
MRBT1824-LHD 18"W x 24"L, 3" x 6" (HD) 65
MRBT2424-LHD 24"W x 24"L, 3" x 6" (HD) 76
MRBT2430-LHD 24"W x 30"L, 3" x 6" (HD) 88
MRBT2436-LHD 24"W x 36"L, 3" x 6" (HD) 99
MRBT3030-LHD 30"W x 30"L, 3" x 6" (HD) 98
MRBT3036-LHD 30"W x 36"L, 3" x 6" (HD) 108
MRBT3636-LHD 36"W x 36"L, 3" x 6" (HD) 116



Common RBT Designations:

Coverage: Half (HC) & Full (FC) Standard Density (SD), 6" x 6" Ball Pattern ,High Density (HD), 3" x 6" Ball Pattern
