Basic Workstations

Ergo-Line HD

Hand Crank Height adjustable Workbench

heavy duty hand adjustable workbench

video_logo40
Heavy Duty
Ergoline

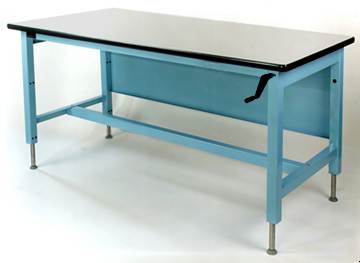

Ergo-Line Hand Crank Vertical Adjustment Workbench - Heavy Duty.

A full 750 lbs. Capacity vertical adjust station for the heavy duty applications our standard 330 lbs. capacity Ergo-Line does not address.

Height range 12"

Standard height adjustment 30" to 42" and, special height ranges can be provided. Additional cost.

Crank handle mounts into front of right or left leg. Please indicate your preference when ordering. Price includes modesty panel and footrest. Optional ESD work surfaces for height adjustable ESD benches.

Optional Accessories

All our "In Stock" Accessories are available for the Ergo-Line HD Models. Select just what you need for your Workstation.
a_checkbluELECTRIFY Your HD Ergo-Line: Order Electric Hydraulic Push Button Height Adjustment for your HD Ergo-Line Workstation. Change the Stock Number Prefix to "ELHE" Call for pricing.

a_clipboad_5

Ergo-Line HD

48"L x 30"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH4830PL 125 No
ESD Laminate, Conductive ELH4830ESD 125 No
Solid Maple, 1.75" ELH4830SM 150 No

48"L x 36"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH4836PL 133 No
ESD Laminate, Conductive ELH4836ESD 133 No
Solid Maple, 1.75" ELH4836SM 160 No

60"L x 30"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH6030PL 140 No
ESD Laminate, Conductive ELH6030ESD 140 No
Solid Maple, 1.75" ELH6030SM 170 No

60"L x 36"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH6036PL 150 No
ESD Laminate, Conductive ELH6036ESD 150 No
Solid Maple, 1.75" ELH6036SM 187 No

72"L x 30"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH7230PL 155 No
ESD Laminate, Conductive ELH7230ESD 155 No
Solid Maple, 1.75" ELH7230SM 192 No

72"L x 36"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH7236PL 165 No
ESD Laminate, Conductive ELH7236ESD 165 No
Solid Maple, 1.75" ELH7236SM 209 No

96"L x 30"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH9630PL 165 No
ESD Laminate, Conductive ELH9630ESD 165 No
Solid Maple, 1.75" ELH9630SM 192 No

96"L x 36"W x Hand Crank Height 30" to 42"

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate ELH9636PL 165 No
ESD Laminate, Conductive ELH9636ESD 165 No
Solid Maple, 1.75" ELH9636SM 209 No

Make it Mobile

Add the optional ELH-POC casters to the model ELH

Convert it to a Height adjustable Lab bench

Select one of the optional laboratory grade work surfaces, stainless steel, epoxy resin or Chem-guard.

Add an optional economy cabinet to the model ELH.
