Retractable Ball Transfers

Portable Scissor Lifts

Portable Hydraulic Scissor Lifts

Enhances the portability of Mobile RBT units. Can handle heavy loads easily.

scissor lifts

Six Fully Hydraulic Models:

Load rated from 300 Ibs. to 1,500 Ibs. Three height ranges to choose from.

Foot Pump or Battery Operation. Provide quick and effortless lifting and lowering.

Use with our Mobile Retractable Ball Transfers. (See below).

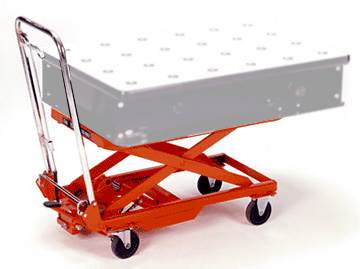

(Illustration Note: Optional MRBT shown grayed out. Pricing is for the lift only, MRBT sold separately.

Portable Scissor Lifts

Foot Pump Operated Hydraulic Scissor Lifts

Stock #CapacityPlatform SizeHeight: Low, MaxStrokesWt.
PSL-1 300 20" W x 32" L 10" Low, 33" Max 12 150
PSL-2 600 20" W x 32" L 10" Low, 33" Max 25 160
PSL-3 1000 20" W x 36" L 9.25" Low, 33" Max 35 335
PSL-4 1500 20" W x 36" L 9.25" Low, 33" Max 55 340
PSL-5 1000 20" W x 48" L 9.25" Low, 45" Max 46 390
PSL-6 1500 20" W x 48" L 9.25" Low, 45" Max 69 395

Battery Operated Hydraulic Scissor Lifts

Stock #CapacityPlatform SizeHeight: Low, MaxTimeWt.
BPL-1 1000 24" W x 36" L 9.25" Low, 33" Max 8 sec 420
BPL-2 1000 24" W x 48" L 9.25" Low, 45" Max 14 sec 425

NOTE: For Foot Pump Models, the Strokes figure is the number of pump strokes to go from collapsed (minimum) height to the maximum height. For Battery Operated Pump Models, the Time figure is the number of seconds required for the lift to travel from collapsed to maximum height.

Now, Put It Together

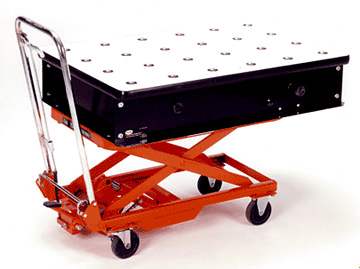

ERGONOMIC MOBILE RBT CARTS: Putting Two Great Ideas Together.
Consist of Two Components: A Portable Hydraulic Scissor Lift & A Mobile RBT.

scissor lifts ball transfer

Lower back injuries account for more lost work days than any industrial injury. If employees followed OSHA regulations and did not lift heavy items, most of these injuries would be eliminated. Build a few of these carts to eliminate all lifting in your facility. Let the machine do the lifting, not your lower back.

Why not build your products on these mobile carts vs. stationary benches? Offload: conveyor, benches, shelving, etc. Balls retract to stabilize your product while cart is in motion
