Basic Workstations

Model CHD

The Model CHD (Cantilever Heavy Duty) is for those who want the mobility of an independent workbench design with the full leg clearance provided by recessed front legs.

The CHD Workbench permits easy station-to-station movement for progressive operations and delivers openness to the work environment.

Comes standard with a modesty panel. Available as an ESD work bench with  optional ESD surface.

CHD Models provide 750 lbs. load capacity at the standard 30 inch height (special heights, over 40 inches, can potentially influence capacity).

CHD Models use the same Accessories as the HD and Ergo-Line Models. Add CHD Workstations along with those models. The modular design permits easy future customization and expansion.

Optional Accessories

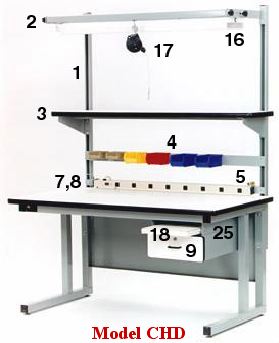

a_checked_Note: The illustration includes Optional Accessories: #1, 2, 3, 4, 5, 7, 8, 9, 16, 17, 18, and 25. More items are present in our Newest Catalog. Get your copy today.

Get A Rise Out of Your MODEL CHD - Note: Order our CHDLE-6 Leg Extension Kit for your Model CHD Station. Allows up to 6 inches adjustment, in 1 inch increments. Bench is moved up on the extension and bolted through frame holes. Stock No. CHDLE-6, Weight 8 lbs. Call for price.

Make it mobile

See our optional casters for the model CHD



Three choices for this model:

  • TLC-4CHDQS In Stock.
  • TLC-4
  • PC-4

Model CHD

48"L x 30"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD483030PL 117 No
ESD Laminate, Conductive CHD483030ESD 119 No
Solid Maple, 1.75" CHD483030SM 143 No

48"L x 36"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD483630PL 126 No
ESD Laminate, Conductive CHD483630ESD 126 No
Solid Maple, 1.75" CHD483630SM 155 No

60"L x 30"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD603030P 138 Yes
ESD Laminate, Conductive CHD603030C 138 Yes
Solid Maple, 1.75" CHD603030M 168 Yes

60"L x 36"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD603630PL 158 No
ESD Laminate, Conductive CHD603630ESD 158 No
Solid Maple, 1.75" CHD603630SM 195 No

72"L x 30"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD723030P 158 Yes
ESD Laminate, Conductive CHD723030C 158 Yes
Solid Maple, 1.75" CHD723030M 195 Yes

72"L x 36"W x 30" H

Top Work SurfaceStock #Wt.In Stock?
Plastic Laminate CHD723630PL 168 No
ESD Laminate, Conductive CHD723630ESD 168 No
Solid Maple, 1.75" CHD723630SM 212 No
